Application
Cement-kiln transition zones; kiln hood, cooler and duct positions where the proposed shape and lining design are suitable.
Aluminosilicate bricks
Silicon mullite brick
Silicon mullite refractory brick for kiln-lining discussions involving abrasion and thermal cycling. Browse the reference data or ask about your application.
At a glance
Options
GM-1650 and GM-1680 catalogue variants; special kiln shapes
Selection key
Share dust loading, gas velocity, thermal cycles and existing wear pattern. The grade number is not a guaranteed operating-temperature limit.
Interested in this material?
Ask about product options or share your requirement. Drawings and complete specifications are optional at the first contact.

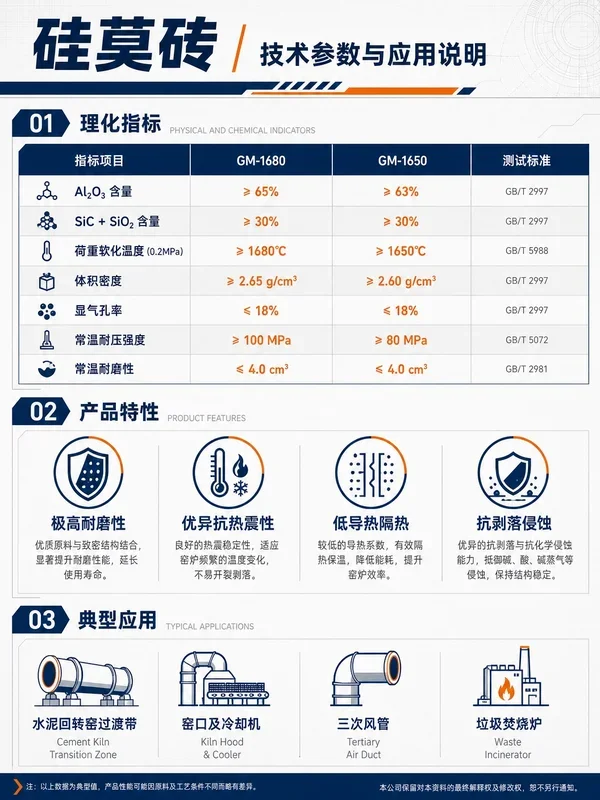

GRADE DATA
Technical specification
Catalogue reference
Reference values for initial comparison. Confirm the selected grade and test methods for an order. Refractoriness and RUL are not continuous service-temperature ratings.
| Property | GM-1650 | GM-1680 |
|---|---|---|
| Al₂O₃ (%) | ≥63 | ≥65 |
| SiC + SiO₂ (%) | ≥30 | ≥30 |
| RUL at 0.2 MPa (°C) | ≥1650 | ≥1680 |
| Bulk density (g/cm³) | ≥2.60 | ≥2.65 |
| Apparent porosity (%) | ≤18 | ≤18 |
| Cold crushing strength (MPa) | ≥80 | ≥100 |
| Room-temperature abrasion loss (cm³) | ≤4.0 | ≤4.0 |
Parameters to include in your specification
- Chemical composition and impurity limits
- Bulk density, apparent porosity and cold crushing strength
- Refractoriness under load: load, endpoint and method
- Permanent linear change: temperature and holding time
- Dimensions, tolerances and joint design
SUPPLIED PRODUCT IMAGES

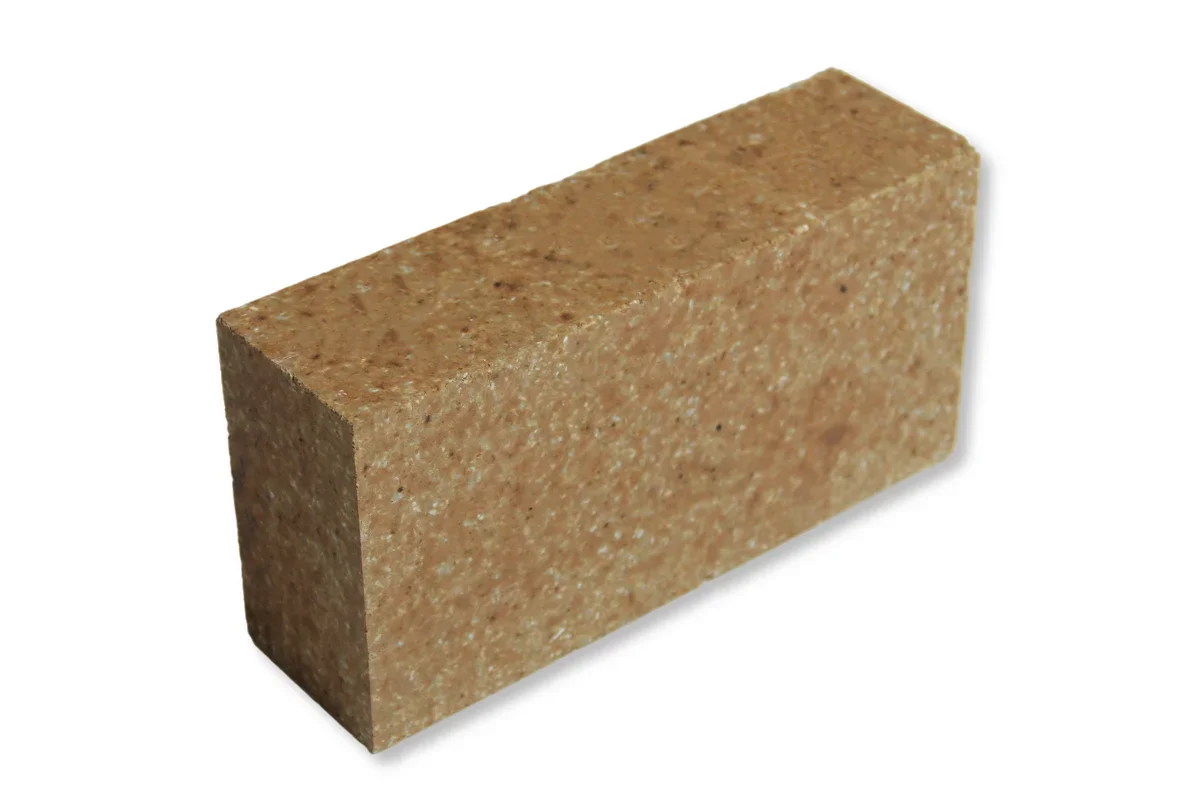

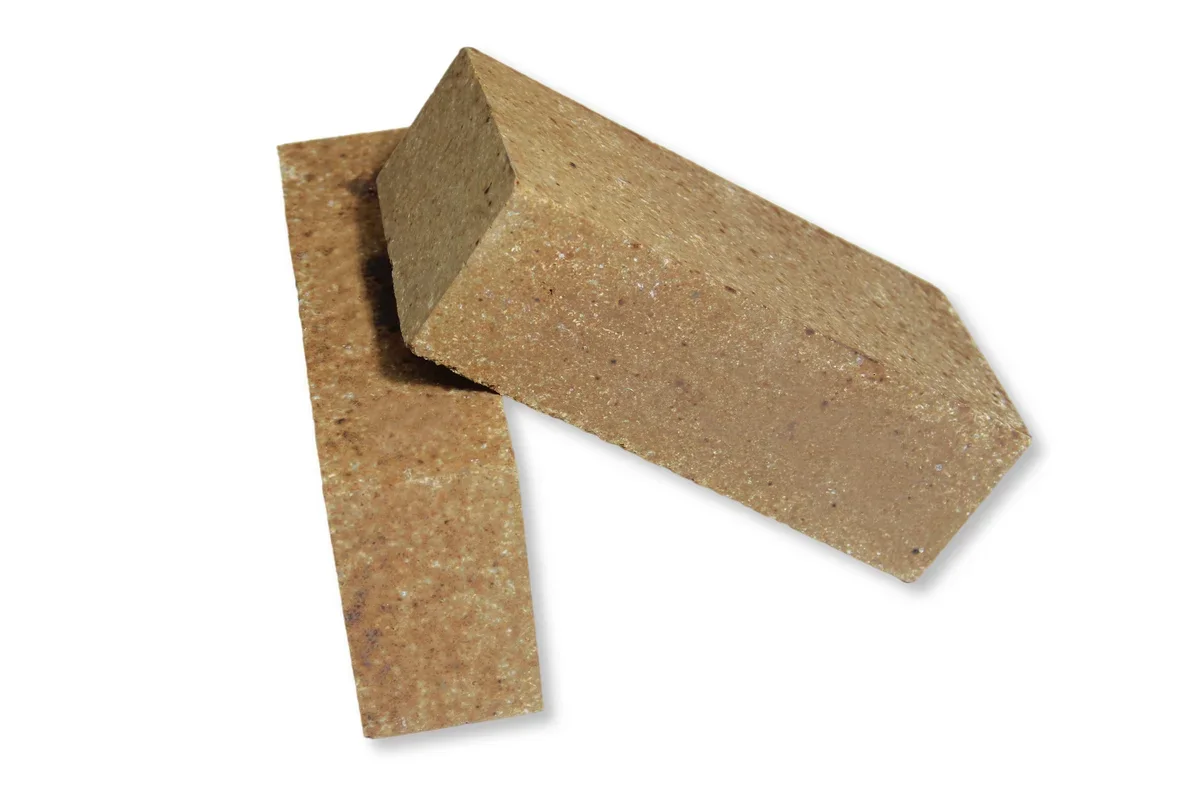

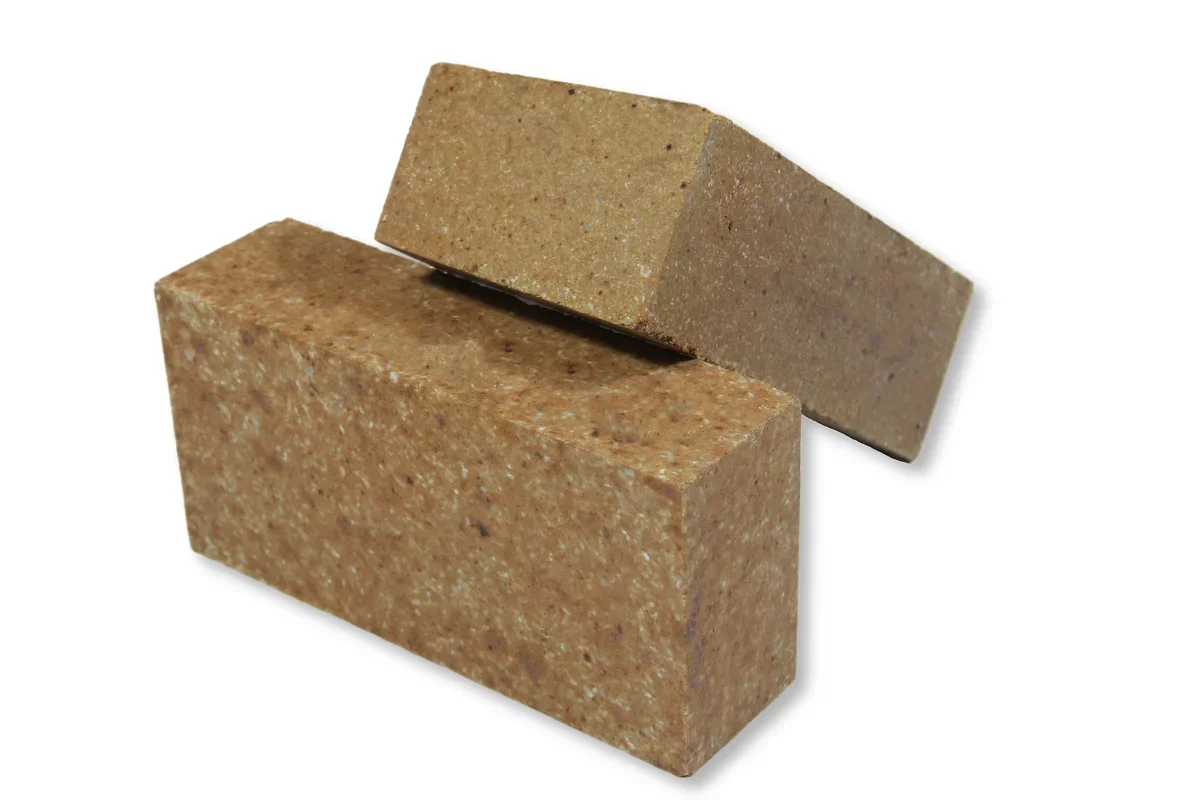

Product views
DOCUMENTS & DELIVERY
Discuss packing, documents & delivery
Prepare the delivery
Confirm shape drawings, dimensional tolerances, brick quantities and pallet marking. Keep the material dry and follow the agreed storage and installation instructions.
Agree the document set
Approved grade data, safety information, drawing revision, inspection records and batch identification as required by the order.
