Application
Selected glass-regenerator and metallurgical furnace positions.
Magnesia & spinel bricks
Fused-magnesia brick — 95 grade
A basic refractory made with fused-magnesia raw material. MgO content is only one part of selection: impurity balance, porosity, bond and operating atmosphere also matter.
At a glance
Options
95-grade straight and shaped bricks; higher-purity variants by enquiry
Selection key
Confirm process chemistry and hydration protection during storage; do not assume suitability for every molten-metal or glass-contact zone.
Interested in this material?
Ask about product options or share your requirement. Drawings and complete specifications are optional at the first contact.
GRADE DATA

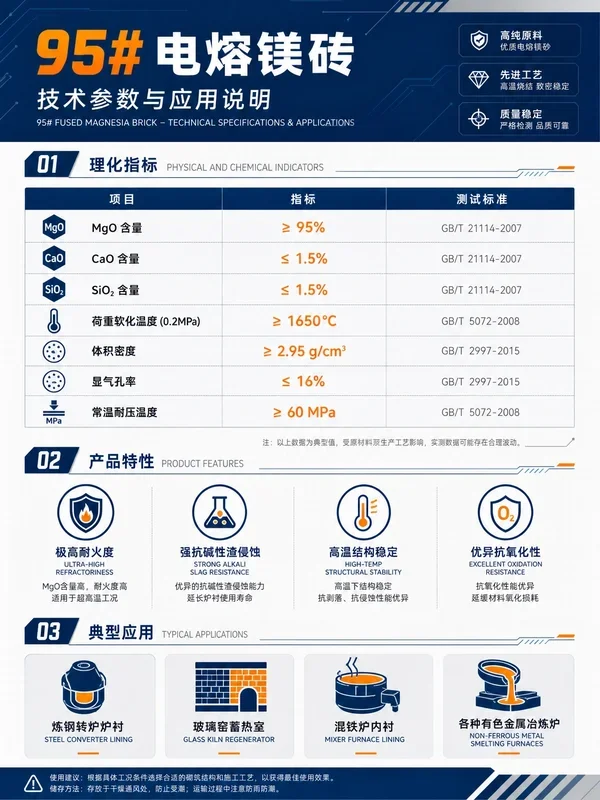

Technical specification
Catalogue reference
Reference values for initial comparison. Confirm the selected grade and test methods for an order. Refractoriness and RUL are not continuous service-temperature ratings.
| Property | 95 grade |
|---|---|
| MgO (%) | ≥95 |
| CaO (%) | ≤1.5 |
| SiO₂ (%) | ≤1.5 |
| RUL at 0.2 MPa (°C) | ≥1650 |
| Bulk density (g/cm³) | ≥2.95 |
| Apparent porosity (%) | ≤16 |
Parameters to include in your specification
- Chemical composition and impurity limits
- Bulk density, apparent porosity and cold crushing strength
- Refractoriness under load: load, endpoint and method
- Permanent linear change: temperature and holding time
- Dimensions, tolerances and joint design
SUPPLIED PRODUCT IMAGES

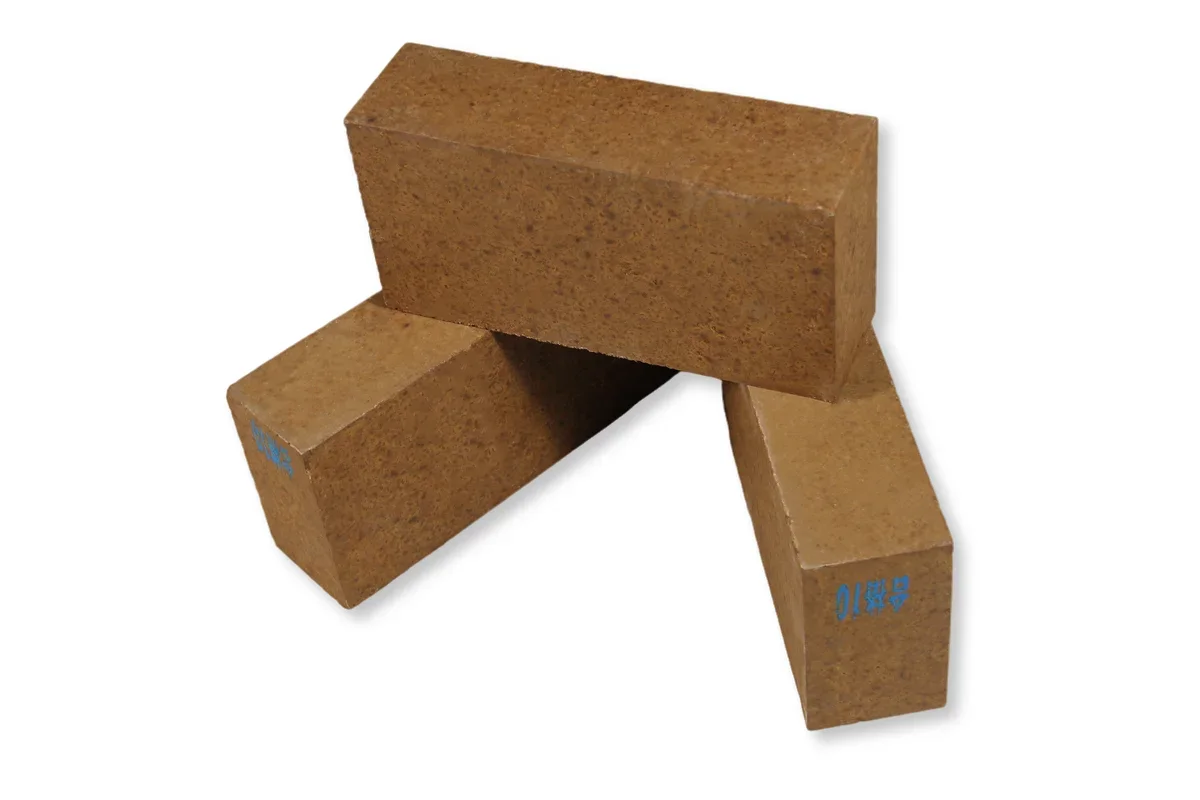

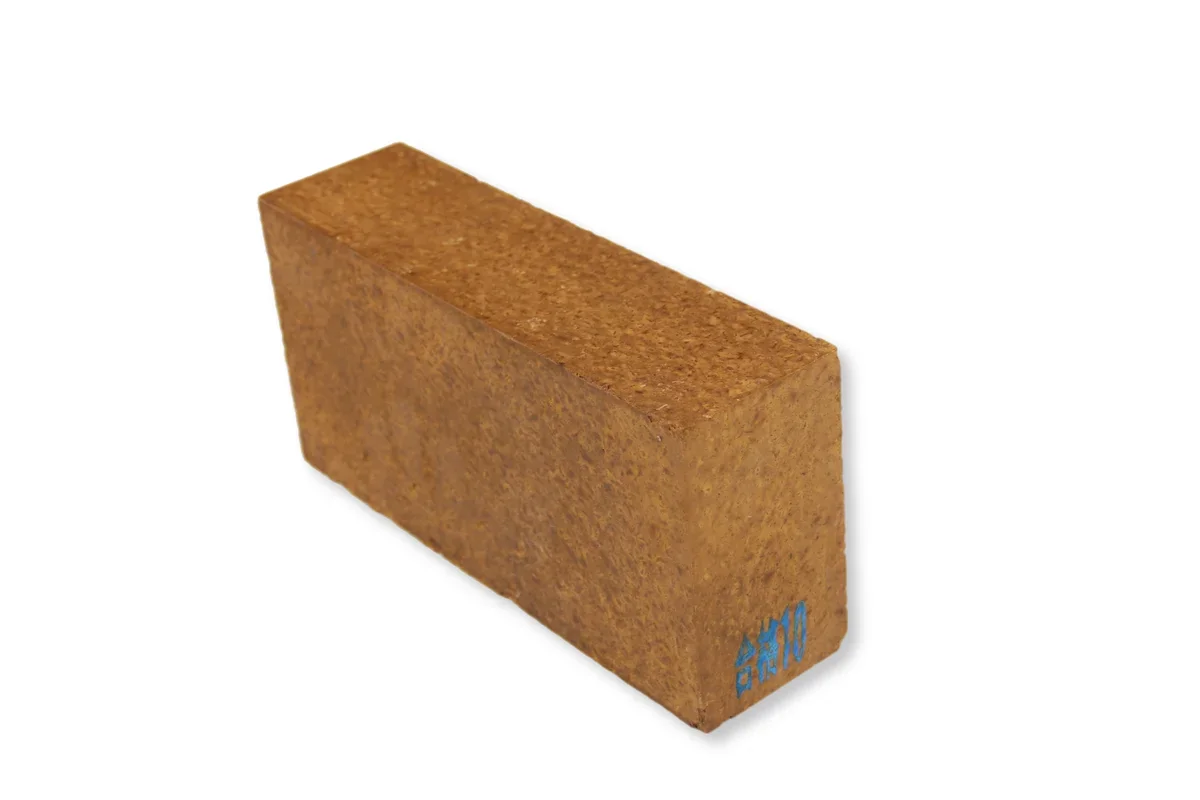

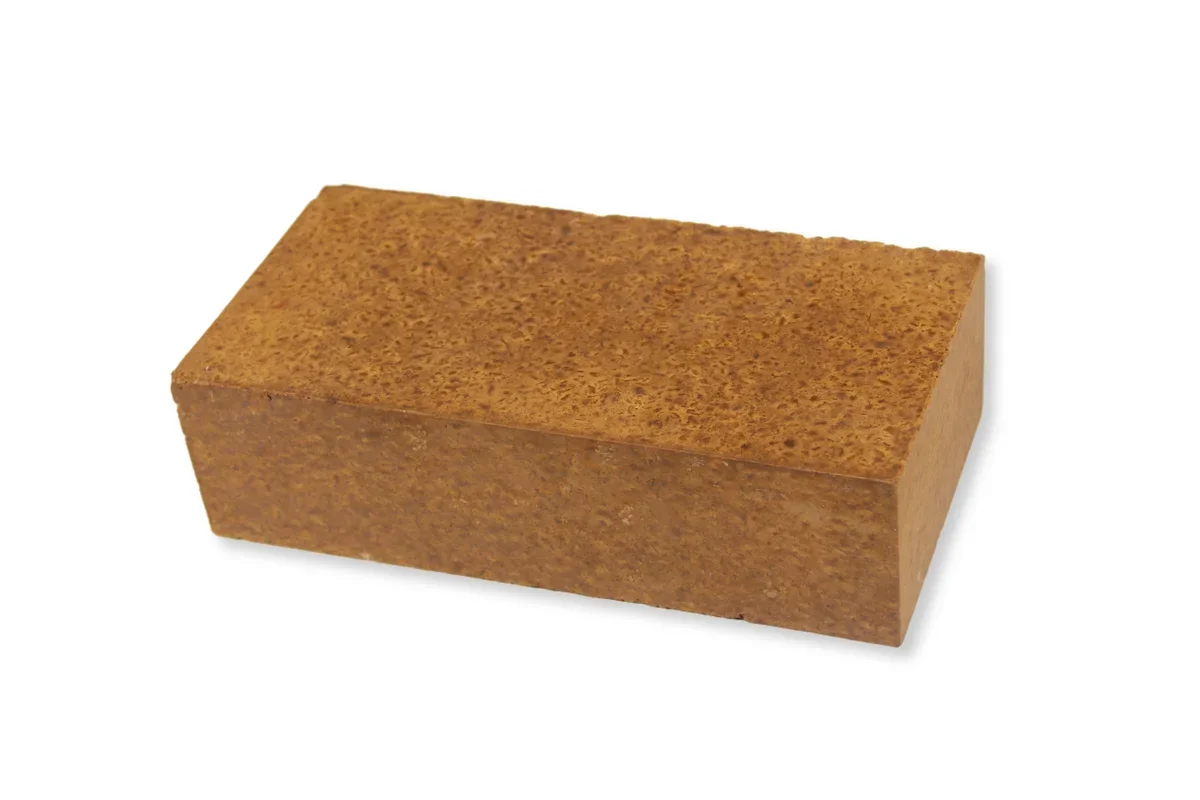

Product views
DOCUMENTS & DELIVERY
Discuss packing, documents & delivery
Prepare the delivery
Confirm shape drawings, dimensional tolerances, brick quantities and pallet marking. Keep the material dry and follow the agreed storage and installation instructions.
Agree the document set
Approved grade data, safety information, drawing revision, inspection records and batch identification as required by the order.
