Application
Industrial furnace walls, arches and selected kiln sections.
Aluminosilicate bricks
High-alumina brick — 65 grade
65-grade high-alumina refractory brick for industrial furnace applications. Discuss the lining position, required shapes and replacement needs with our team.
At a glance
Options
Standard bricks, wedges and special shapes
Selection key
Confirm the continuous duty and local chemical exposure before substituting for another high-alumina grade.
Interested in this material?
Ask about product options or share your requirement. Drawings and complete specifications are optional at the first contact.

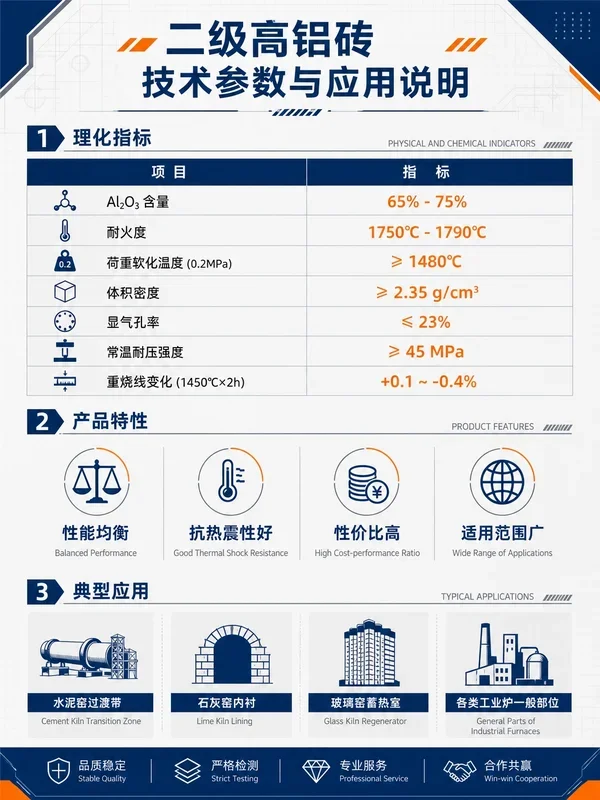

GRADE DATA
Technical specification
Catalogue reference
Reference values for initial comparison. Confirm the selected grade and test methods for an order. Refractoriness and RUL are not continuous service-temperature ratings.
| Property | 65 grade |
|---|---|
| Al₂O₃ (%) | 65–75 |
| Refractoriness (°C) | 1750–1790 |
| RUL at 0.2 MPa (°C) | ≥1480 |
| Bulk density (g/cm³) | ≥2.35 |
| Apparent porosity (%) | ≤23 |
| Cold crushing strength (MPa) | ≥45 |
Parameters to include in your specification
- Chemical composition and impurity limits
- Bulk density, apparent porosity and cold crushing strength
- Refractoriness under load: load, endpoint and method
- Permanent linear change: temperature and holding time
- Dimensions, tolerances and joint design
SUPPLIED PRODUCT IMAGES

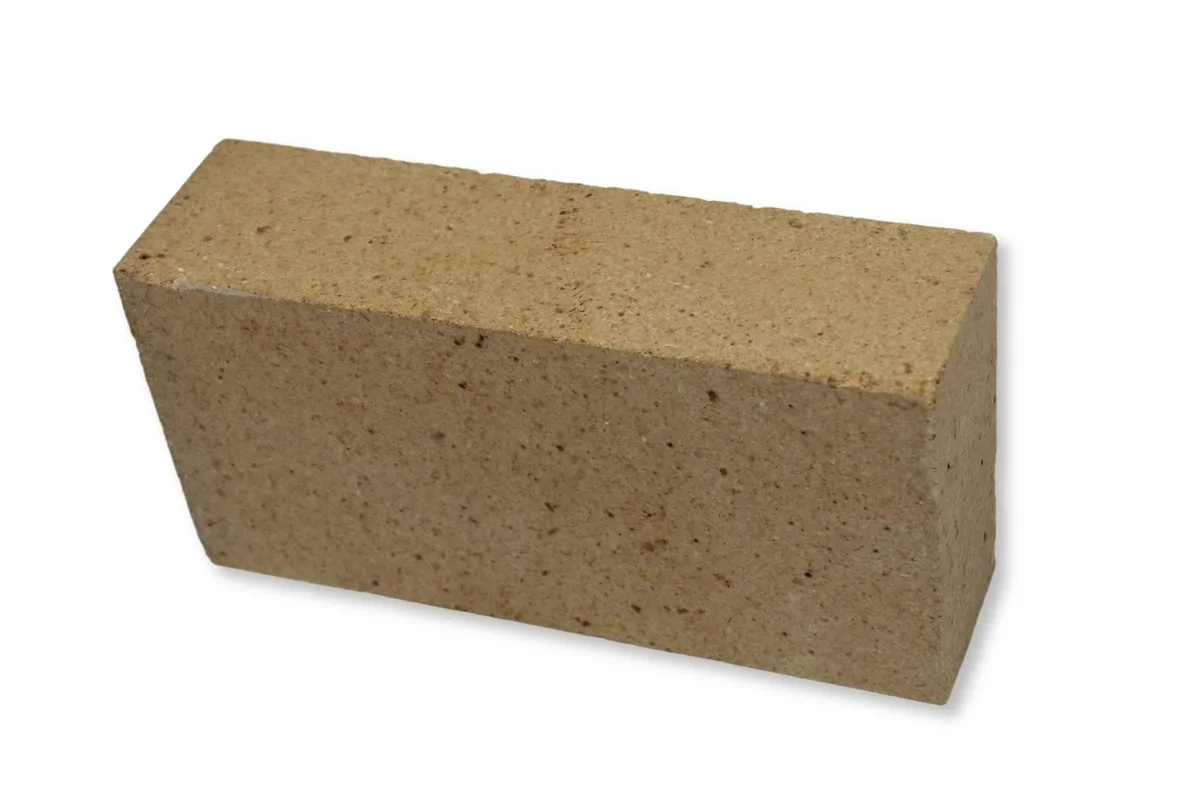

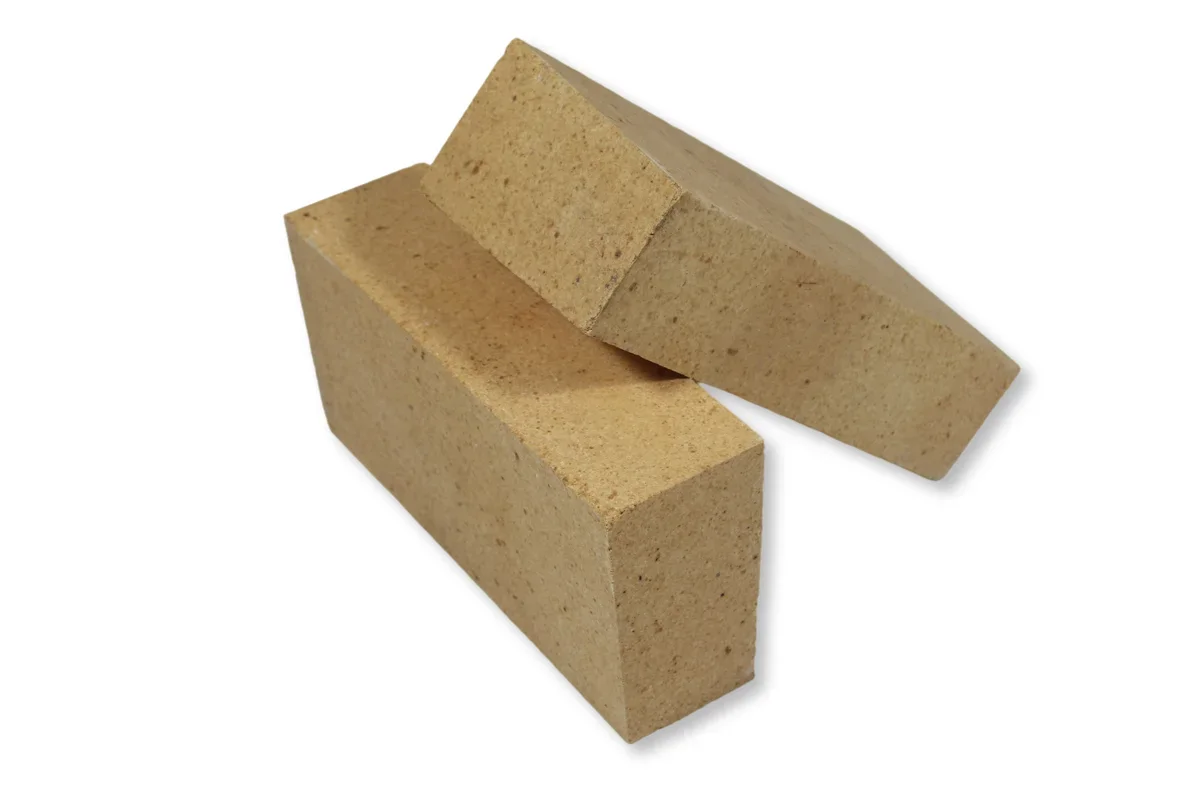

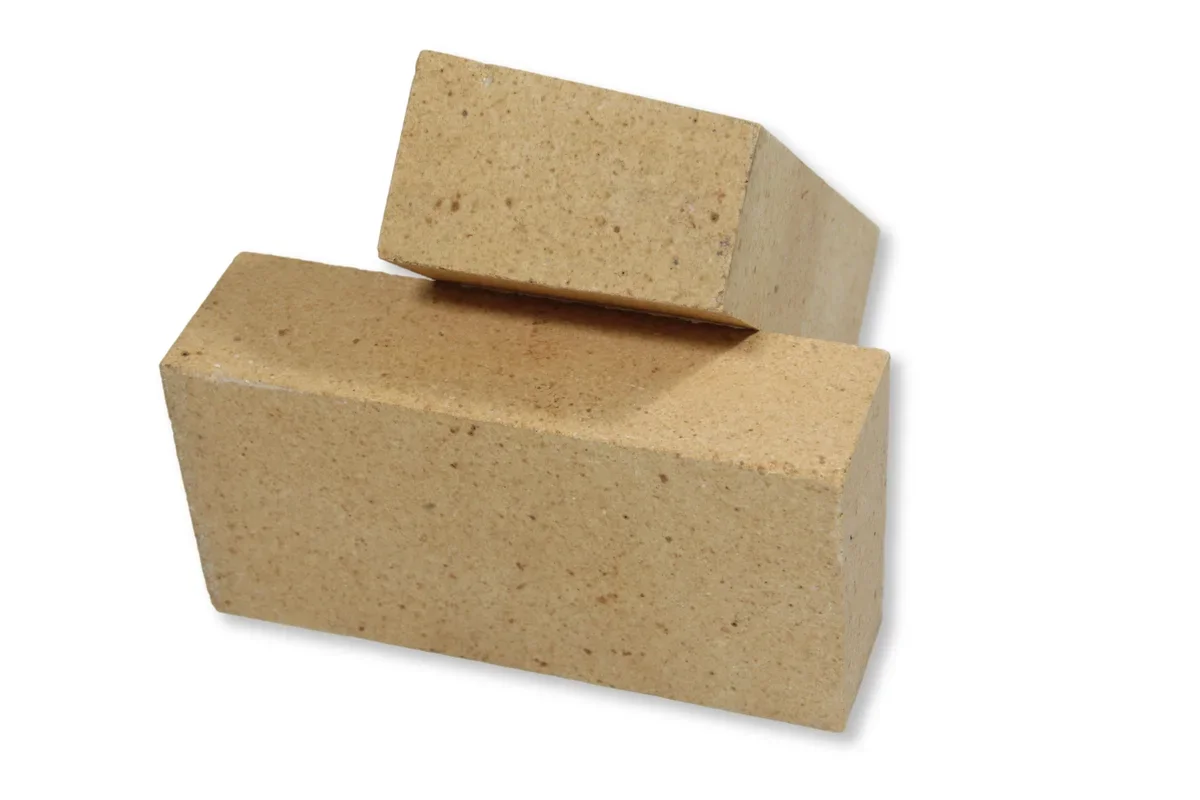

Product views
DOCUMENTS & DELIVERY
Discuss packing, documents & delivery
Prepare the delivery
Confirm shape drawings, dimensional tolerances, brick quantities and pallet marking. Keep the material dry and follow the agreed storage and installation instructions.
Agree the document set
Approved grade data, safety information, drawing revision, inspection records and batch identification as required by the order.
Related materials & systems
Silicon mullite brick
Aluminosilicate bricks
Cement-kiln transition zones; kiln hood, cooler and duct positions where the proposed shape and lining design are suitable.
- Al₂O₃ (%)
- ≥63
- SiC + SiO₂ (%)
- ≥30
- RUL at 0.2 MPa (°C)
- ≥1650
Catalogue reference values
Alkali-resistant brick
Aluminosilicate bricks
Cement preheaters, calciners and kiln-inlet systems, subject to operating conditions.
- Al₂O₃ (%)
- 25–30
- SiO₂ (%)
- 60–65
- RUL at 0.2 MPa (°C)
- ≥1300
Catalogue reference values
