Application
Selected cement rotary-kiln burning and transition zones; other basic refractory positions after review.
Magnesia & spinel bricks
Magnesia–alumina spinel brick
Magnesia-alumina spinel refractory brick for selected cement-kiln lining applications. Discuss the kiln position, existing lining and required shapes.
At a glance
Options
MA-S80 and MA-S85 catalogue variants; rotary-kiln wedges
Selection key
Review fuel mix, alkali circulation, coating stability, ovality and shutdown history before defining the brick zone.
Interested in this material?
Ask about product options or share your requirement. Drawings and complete specifications are optional at the first contact.

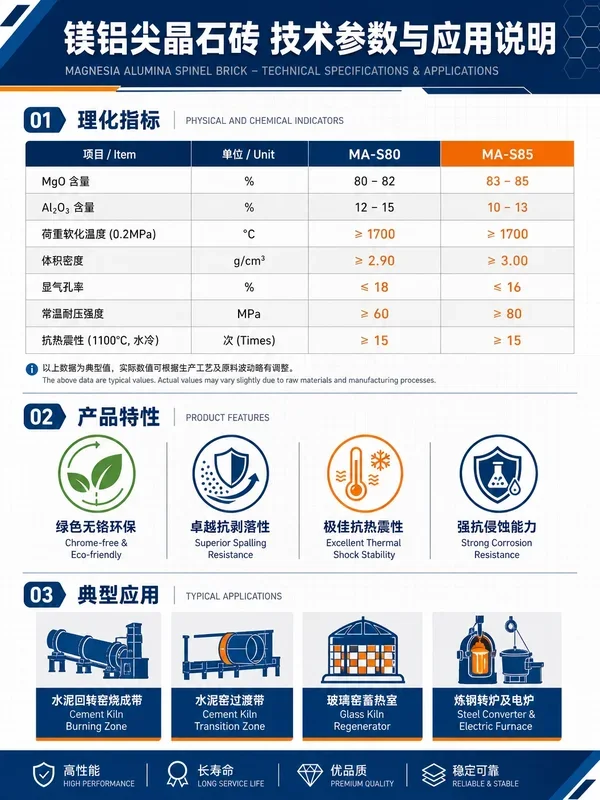

GRADE DATA
Technical specification
Catalogue reference
Reference values for initial comparison. Confirm the selected grade and test methods for an order. Refractoriness and RUL are not continuous service-temperature ratings.
| Property | MA-S80 | MA-S85 |
|---|---|---|
| MgO (%) | 80–82 | 83–85 |
| Al₂O₃ (%) | 12–15 | 10–13 |
| RUL at 0.2 MPa (°C) | ≥1700 | ≥1700 |
| Bulk density (g/cm³) | ≥2.90 | ≥3.00 |
| Apparent porosity (%) | ≤18 | ≤16 |
| Cold crushing strength (MPa) | ≥60 | ≥80 |
| Thermal shock: 1100°C, water cooling (cycles) | ≥15 | ≥15 |
Parameters to include in your specification
- Chemical composition and impurity limits
- Bulk density, apparent porosity and cold crushing strength
- Refractoriness under load: load, endpoint and method
- Permanent linear change: temperature and holding time
- Dimensions, tolerances and joint design
SUPPLIED PRODUCT IMAGES

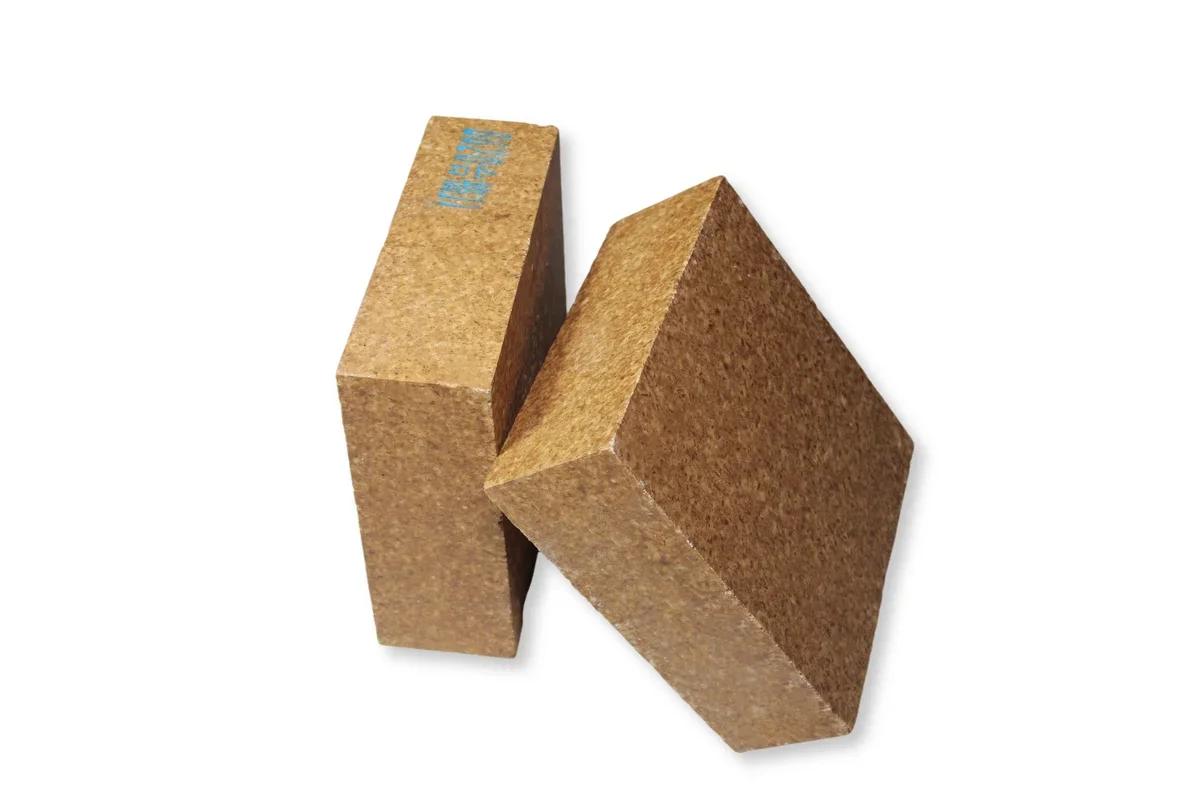

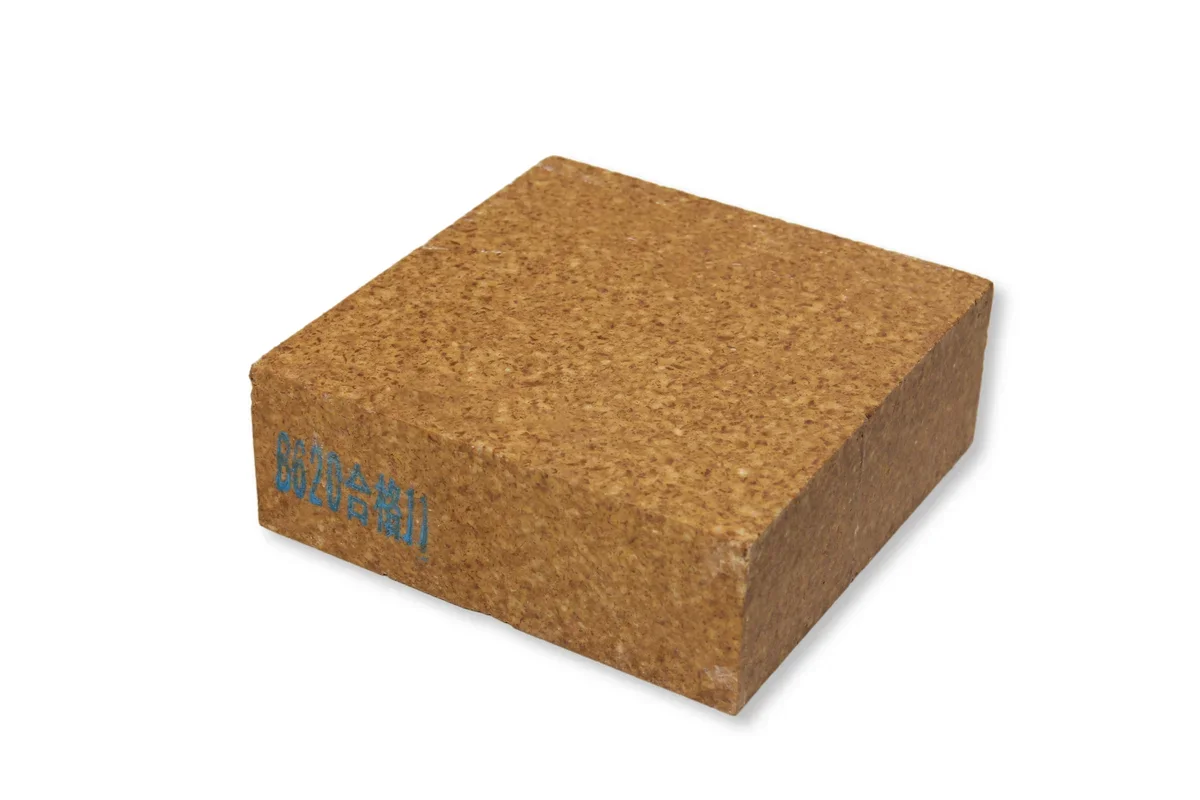

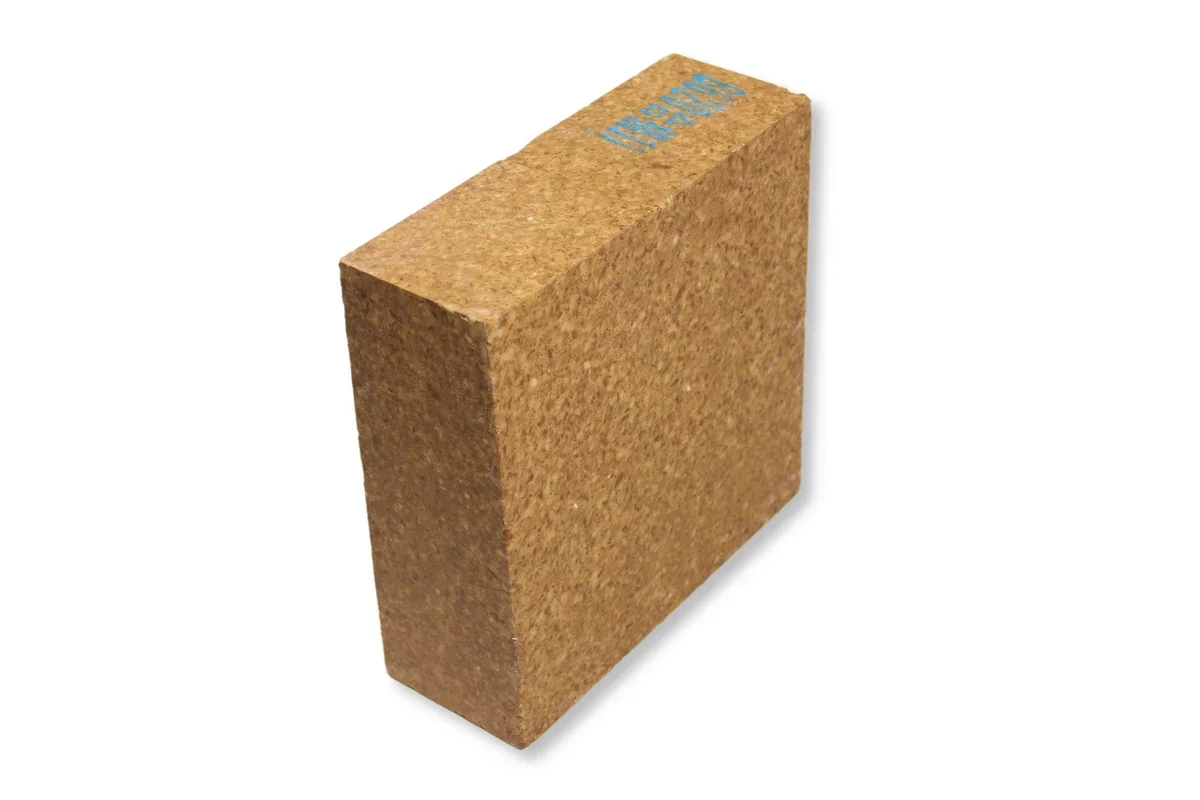

Product views
DOCUMENTS & DELIVERY
Discuss packing, documents & delivery
Prepare the delivery
Confirm shape drawings, dimensional tolerances, brick quantities and pallet marking. Keep the material dry and follow the agreed storage and installation instructions.
Agree the document set
Approved grade data, safety information, drawing revision, inspection records and batch identification as required by the order.
